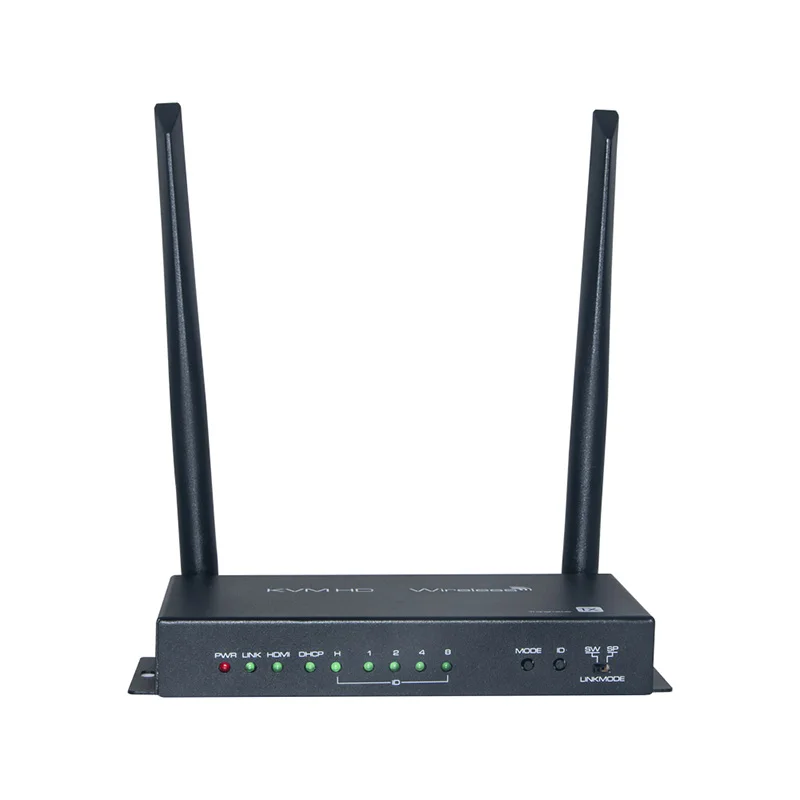

4K Wireless Transmission System Wireless HDMI KVM Extender Transmitter Receiver Video WIFI 100m Wireless HDMI TV Sender Kit

4K Wireless Transmission System Wireless HDMI KVM Extender...

Sale price$261.98 Regular price$286.99
Color:
Plug Type:

Plug Type

SPECIFICATIONS

Resolution: 3840 x 2400

Package: Yes

Origin: Mainland China

Monitor Connections: 1 Ports

Interface Type: HDMI

Computer Connections: 1 Ports

Brand Name: CHUYONG

5GHz 4K UHD KVM Wireless Transmitter Receiver kit HD Video Extender Converter 100M Wifi HD Sender Receiver Adapter for DVD PC to TV

Note :This product is used by pair (TX =Transmitter ,RX =Receiver ),Please choose TX RX if this is your first order ,thank you !
Introduction:
This wireless HD extender will let the user experience of transmitting the HD content by wireless. The HD sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away.
The extender follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HD mirror output and infrared remote control extension. The HD Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments etc
Feature:
Contains a transmitter (TX) and a receiver (RX). The HD signal over wireless transmission from the transmitter to the receiver
The TX support one HD loop output, for local screen monitor
Support HD resolution:HD:480P/720P/1080P/2160P@60/50/30/25/24
Digital 5GHz frequency wireless A/V transmission, high transmission rate and strong anti-interference capability
Using an external dual - gain antennas. Full HD 2160p transmits up to 100 meters wirelessly in open space.( May be affected by the use environment)
Extends infrared remote to control source device from display side
Simple Plug and Play. Full hardware design, no software installation required
Support Web Configuration Interface, Simple and easy to use .

SPECIFICATIONS:

Model No.

HDEX0028M1

Model name

KVM HD Wireless Extender

Ports

TX: HD IN x1, HDOUT x1, AUX IN x1, IR OUT
x 1, RS232 x1, Micro USB x1, DC JACK x1

RX: HD OUT x1, AUX OUT x1, IR IN x 1, RS232 x1,
USB2.0 x2, DC JACK x1

HD input resolution

480P/720P/1080P/2160P@60/50/30/25/24

Supports HDR (HDR10/HDR12/Dolby Vision/HLG)

HD loop output resolution

Same as input, with no latency

HD output resolution

480P/720P/1080P@60Output 4K@30 when 4K input

HD Audio format

LPCM (48/44.1/32KHZ
16/20/24bit)

Input/output TMDS signal

0.5~1.5Vp-p(TTL)

Input/output DDC signal

5Vp-p(TTL)

Transmission latency

Less than 80ms

Wireless standard

802.11 ac WiFi MIMO technology

Wireless Band

4.900 GHz ~ 5.845 GHz (5GHz ISM Band)

Antenna type

External dual 5dBi gain
antenna

Transmit Output Power

802.11ac /MCS9 : 12dBm ± 2 dBIPEX

Transmission distance

100m (in open space)

IR Carrier frequency

20~60KHz

Power adapter specification

Input: AC 100~240V / Output: DC 5V/1A (Micro USB)

Max working current

TX 500mA, RX 500mA

Working temperature range

0~ +40

Working humidity range

10 to 85%RHNo Condensation

Storage temperature

-10 to 60

Storage humidity

5 ~95%RH(No Condensation)

Size

137.2*76.7*23.5 (mm)

Weight

TX:280g,RX:280g

Accessories




Transmitter x1,Receiverx1, Manualx1, Power Adaptorx2, Micro USB-USB cable x1, IR Transmitter cable x1, IR Receiver cable x1
