4K 60Hz 4x2 HDMI KVM Matrix Switch Splitter 4 In 2 Out 2 USB Keyboard Mouse Control 4 Computers Support USB Flash Drive Printer

4K 60Hz 4x2 HDMI KVM Matrix Switch Splitter...

Sale price$173.98 Regular price$188.99
Color:
Length:

Length

SPECIFICATIONS

Version: HDMI-compatible 2.0a

Type: HDMI Cables-compatible

Shielding: Combination

Packing: Polybag

Package: No

Origin: Mainland China

Model Number: New USB 4X2 KVM Matrix

Gender: Female-Female

Feature: HDMI2.0-compatible

Connector B: HDMI,USB,jack,Optical Interface

Connector A: HDMI,USB

Brand Name: RULLZ

Application: Computer,Multimedia,Monitor,DVD Player,Projector,Television,TV box,Amplifier,MP3 / MP4 Player,Camera






Remarks:

1)There are too many version of USB mouse and keyboards, we can not make sure the compatibility,so standard
104-key wired USB keyboard, standard 2 or 3 button wired USB mouse are recommended. 2)The Matrix switcher
has limited compatibility with mechanic keyboard/mouse,we dont recommend to use with these mechanic versions.
3)Premium HDMI certified HDMI 2.0 cable is really needed to work with our item. 4)There are thousands of video
sources and display froms various brands and manufacturers, there is not a single item which can supports all models.
5) if there is any problem, pls contact us for trouble shooting instead of openning a dispute or negative feedback.
6) Our 4x2 KVM Matrix is fully tested before delivery,buy with confidence!


Note : The difference of this two models is that the 5-USB Version Matrix can support read USB Flash Disk or
Connect USB Printer (
do not support play USB Flash Disk videos,only support copy datas)





Descriptions OF 4 USB Version 4x2 Matrix:

Brand new and high quality,fully tested ,buy with confidence!

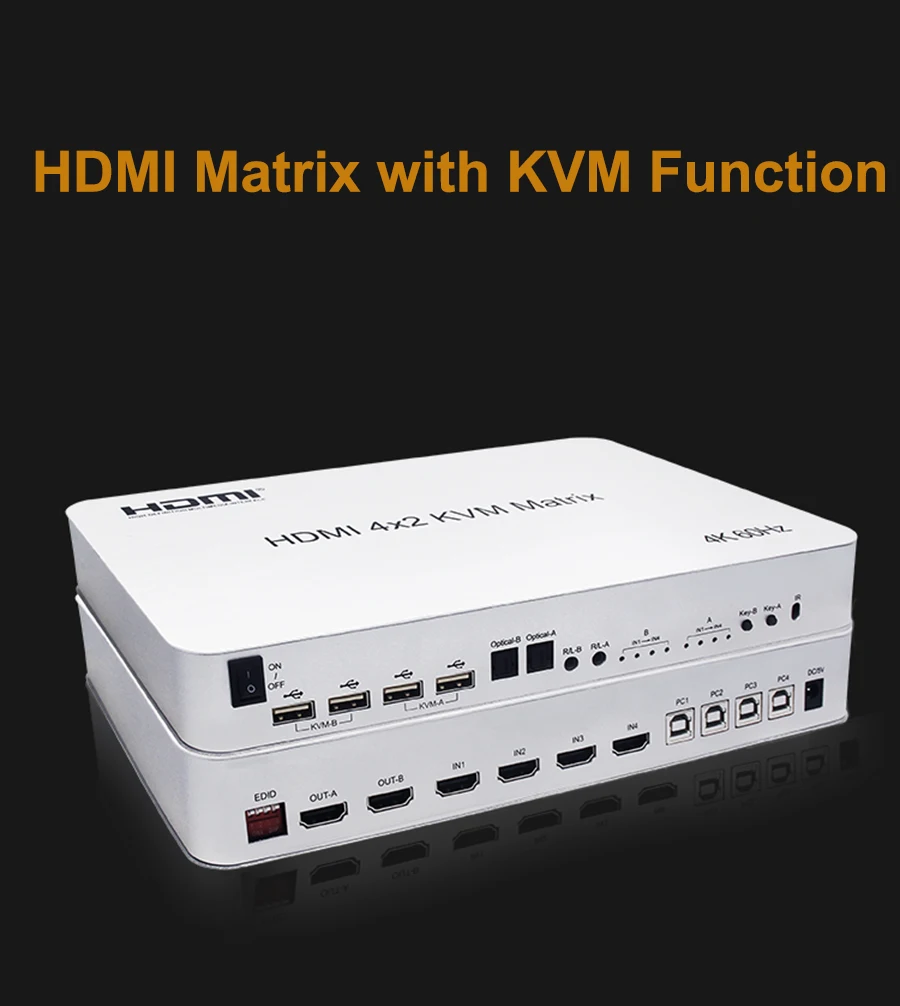

The HDMI 4x2 KVM matrix allow 4 HDMI sources to be displayed on 2 HD display terminals with optical fiber
or stereo headphone output. Two sets of mouse and keyboard can control devices up to 4 PC ports.

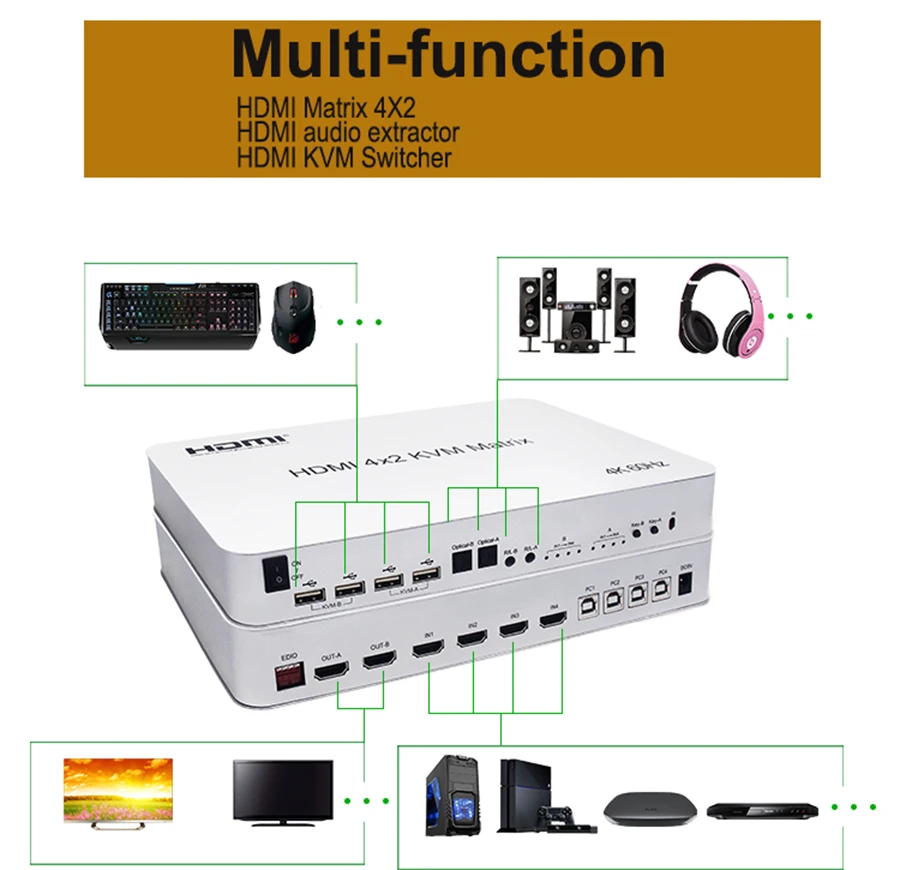

The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.
And any output ports can realize independent audio output by optical fiber or stereo headphone.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution,
conference room presentation, school and corporate training environments.















Features:

*Support HDMI resolution up to 3840*2160/60Hz;
*Support 3D video format;

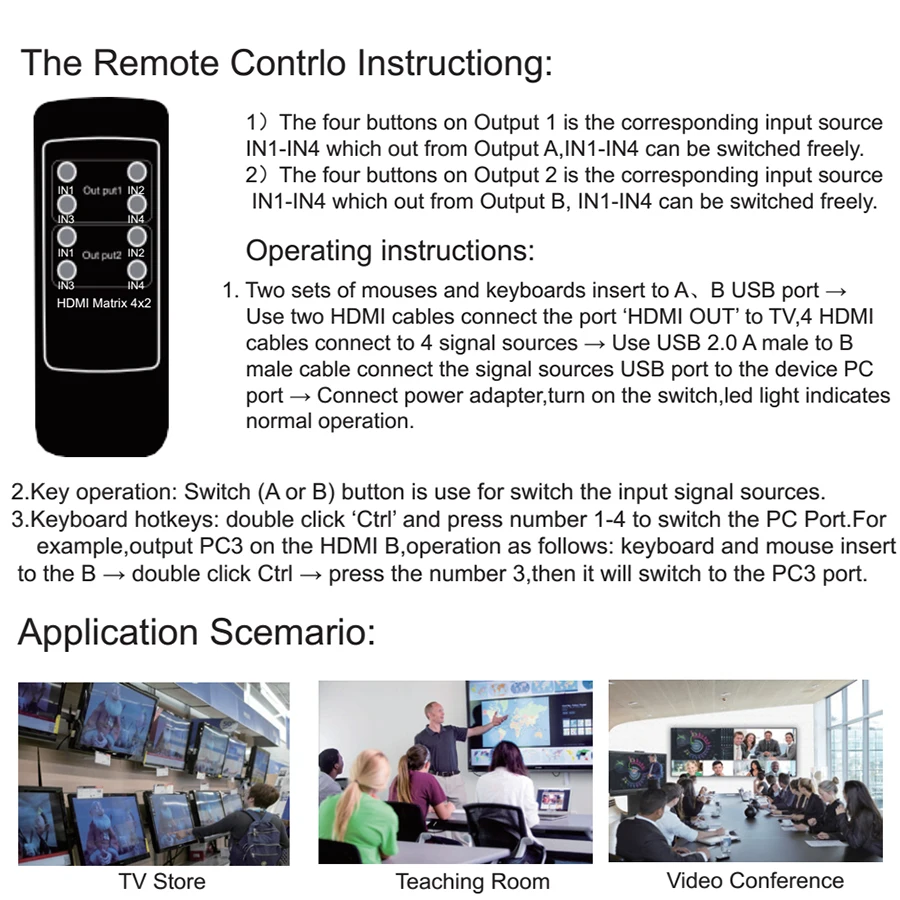

*Support 3 switching modes:IR remote control,button,keyboard hotkeys;
*Support 4K (input) resolution turn to 2K (output)(Down scaler);
*Support 2 HDMI audio extraction, 3.5mm earphone jack and optical fiber interface output at same time;
*4 HDMI inputs switch and split to 2 HDMI displays;
*Support LPCM/Dolby/DTS 5.1 channel.



Specifications :

HDMI resolution.............................................up to 3840*2160/60Hz
Support video format...................................8/10/12 bit deep color
Support audio format................................LPCM/DTS/Dolby-AC3
Max bandwidth.......................................................600MHz
Max baud rate ...............................................................3x6Gbps
Input cable distance....................4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Output cable distance.....................4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Cable length................Standard USB 2.0 A male to B male cable≤ 2m
HDMI Input........................................................4
HDMI Output.....................................................2
Max working current.............................................800mA
Power adapter format................Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A
Operating temperature range.............................(-15 to +45℃)
Operating humidity range.....................5 to 90%RH (No Condensation)
Dimension (L x W x H)..............................Approx. 256x153x33 (mm)
Weight .............................................................Approx. 1208g




Package contents:

4K60HZ 4x2 HDMI KVM Matrix X1
USB data cables X4
DC power adapter  X1
Remote control X1(no battery)
User manual X1
NO Retail box,if need,pls contact us first
