USB-C Triple Display MST Laptop Docking Station DisplayPort HDMIport 4K/60Hz USB 3.0 RJ45 Ethernet For Mac OS Windows Wavlink

USB-C Triple Display MST Laptop Docking Station DisplayPort...

Sale price$116.98 Regular price$131.99
Color:

SPECIFICATIONS

Width: 3.27inch

Type: Laptop Docking Stations

Type: USB-C Triple Display 4K MST Docking Station

Power Supply: DC20V / 5A 100Watt

Power Plug: EU/US/UK

Port 2: 1 x RJ45, 4-Pole Phone Jack, SD / TF CardReader, 4 x USB3.0-A

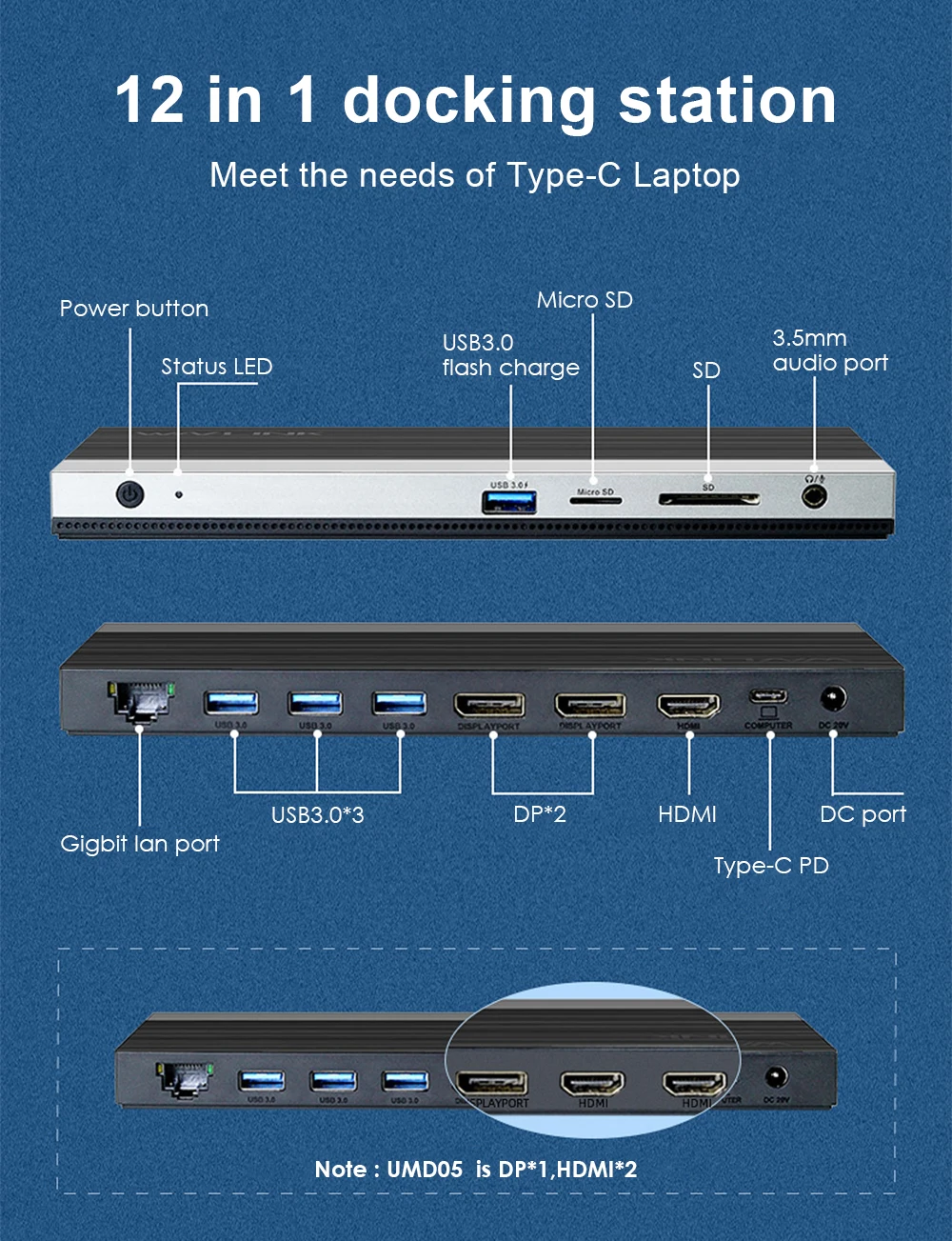

Port 1: DC Jack, USB-C(upstream), 2 x Displayport, 1 x HDMIport

Package: Yes

Origin: Mainland China

Operating System: Mac OS, Windows

Model Number: WL-UMD01/UMD05

Max.Charing Current(A): 3A

Max. Pixels: 4K / 60Hz

Material: Aluminum

Length: 8.15inch

Flash: 4M-Bit

Feature2: USB 3.1 Triple Display Docking Station

Feature1: USB 3.0 laptop docking station

Chipset: FL5002, FL5000, VMM5320, RTL8153B, ALC4030

Certification: CE

Brand Name: WAVLINK

Wavlink USB-C Triple Display (2 DP+1 HDMI-port or 1 DP + 2 HDMI)4K MST Docking Station with USB Power Delivery For USB 3.0 Laptop Docking Station
Description

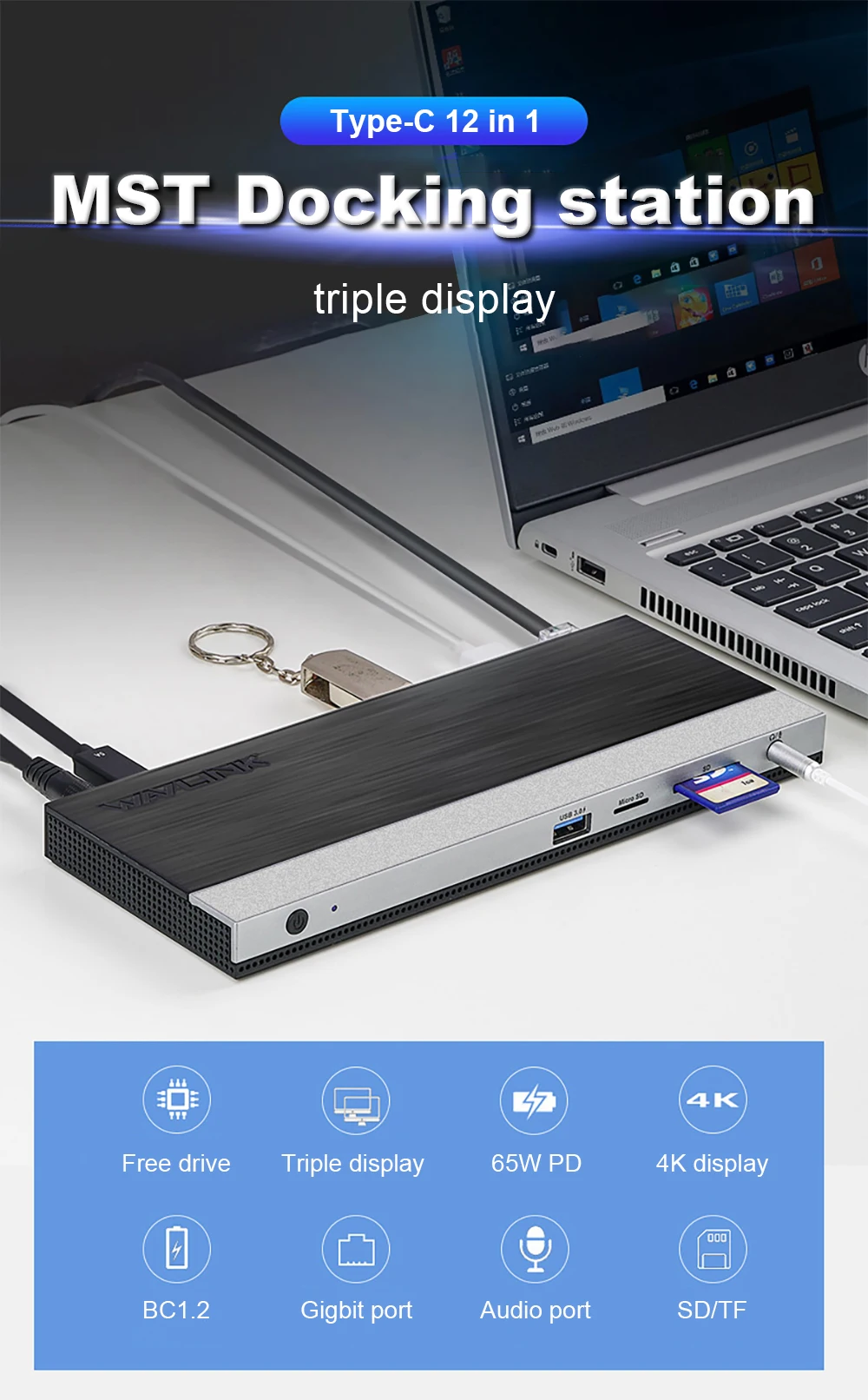

USB-C Triple Display MST Docking Station delivers device charging to your Laptop Computer, supports up to three displays, and enables connectivity to your wired network and other accessories.

Features
----1. Compatible with Type-C USB3.1 Gen2 full specification PC Computer.

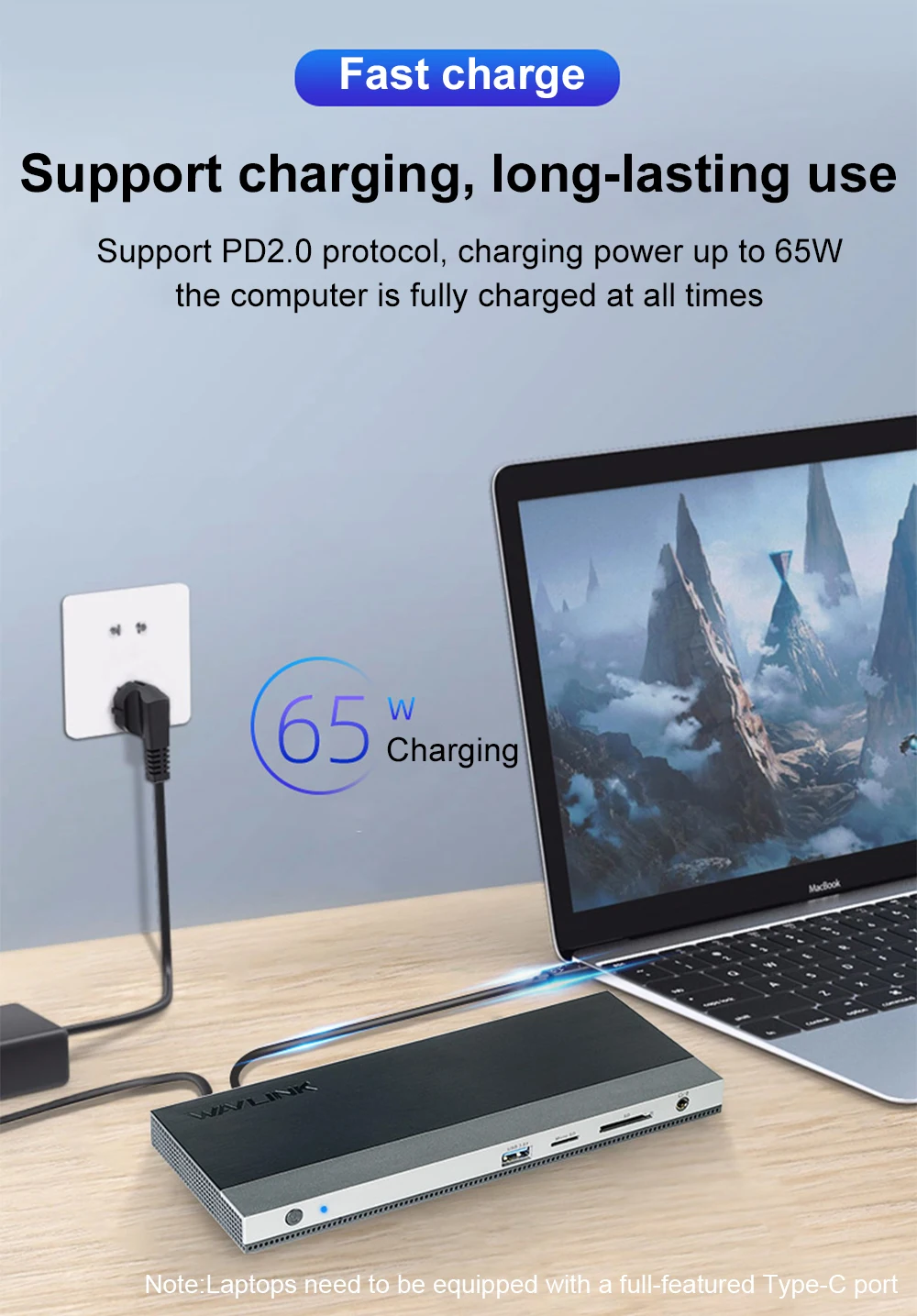

---2. USB Power Delivery with 4 profile support 65 Watts upstream charging.
---3. DisplayPort support V1.4; HDMI-port support HDMI V2.0
----4. Support triple display, max. resolution up to 1920x1080@60 (HBR3 DP1.3)
---5. Support dual display, max. resolution up to 2560x1440@60 (HBR3 DP1.3)

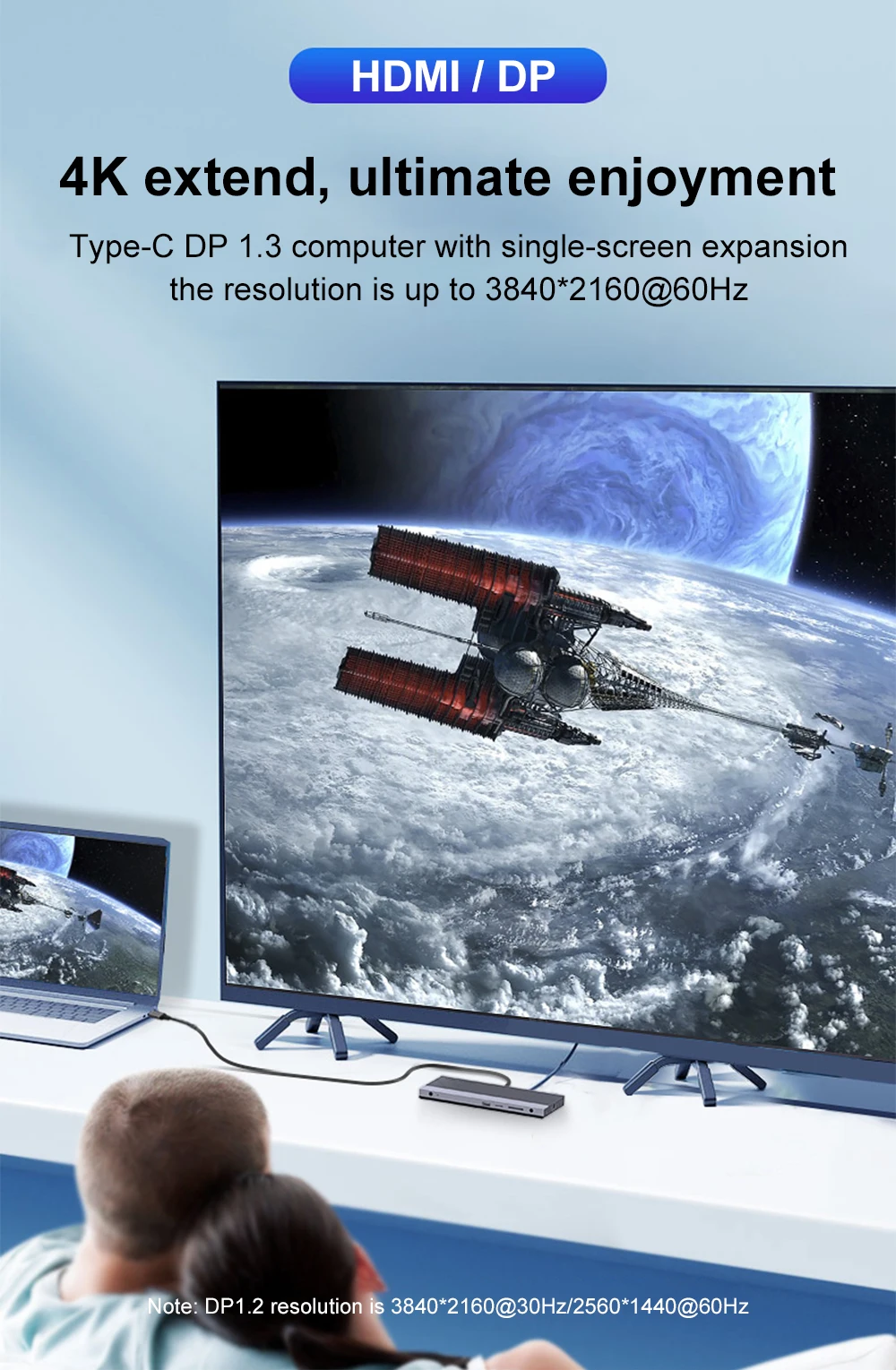

----6. Support single display, max. resolution up to 3840x2160@60 (HBR3 DP1.3)

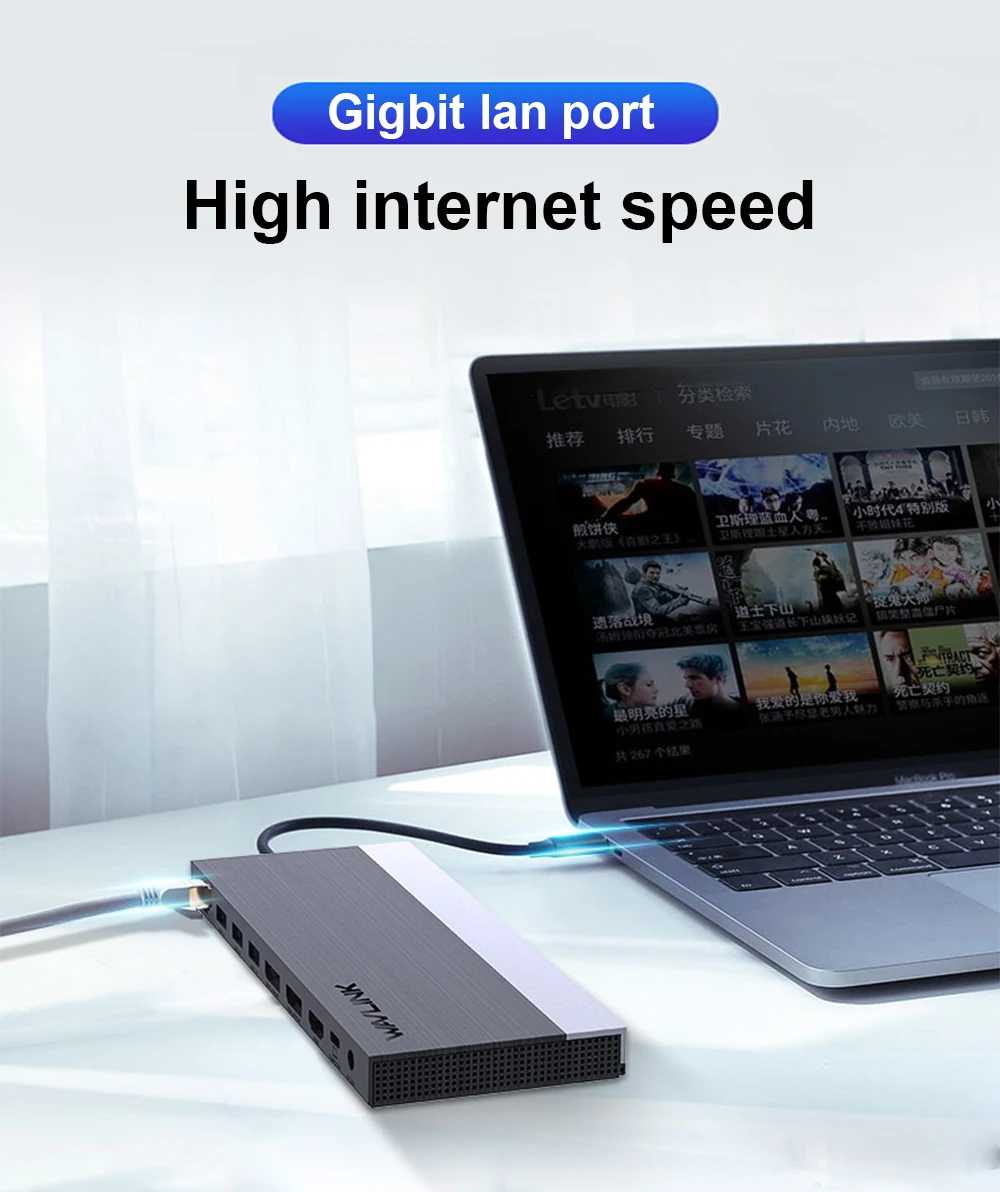

---7. Build in Gigabit Ethernet network RJ-45 backward 10/100 Ethernet.

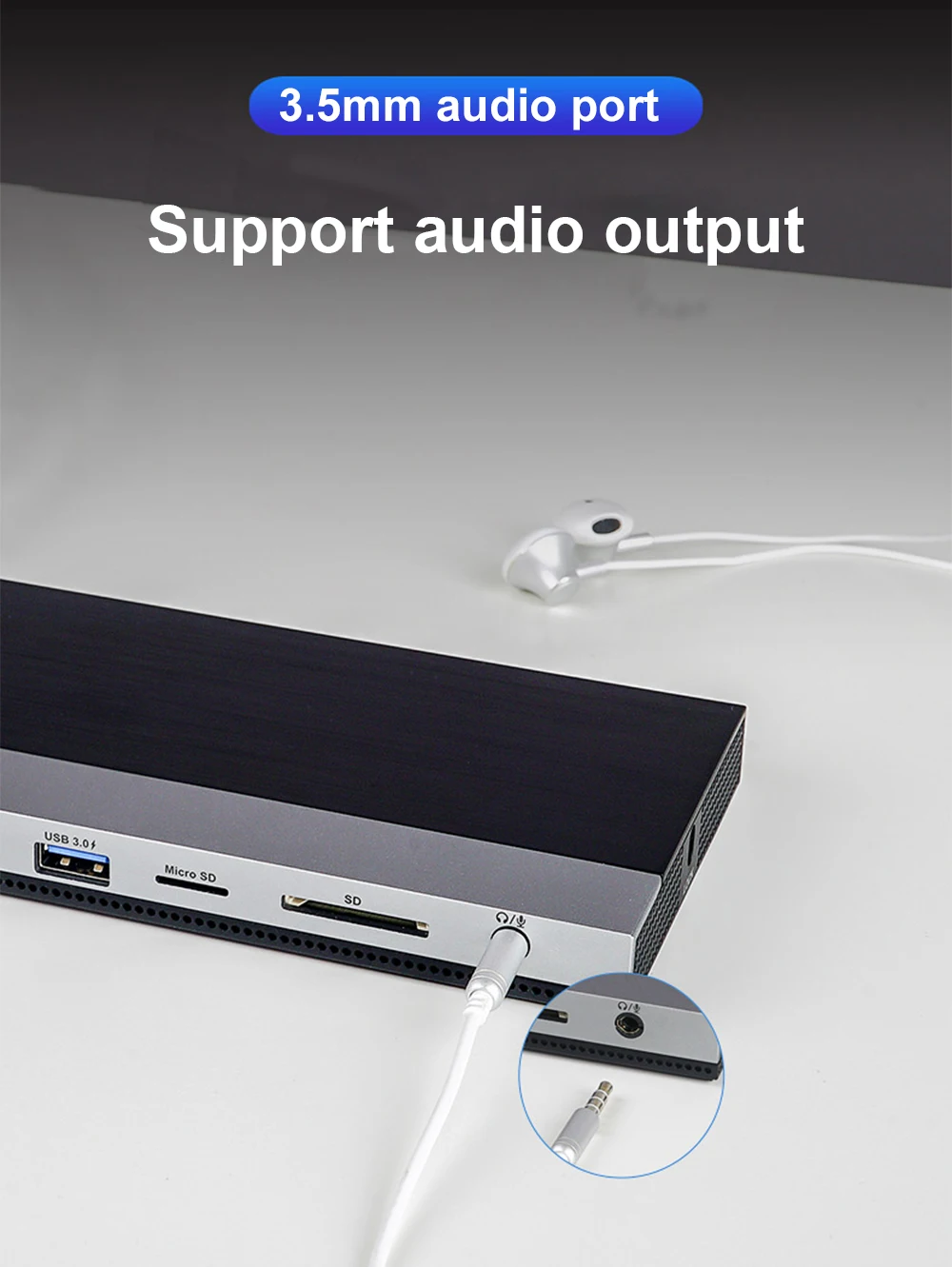

----8. Build in 4-Pole phone Jack for stereo audio out and microphone in.

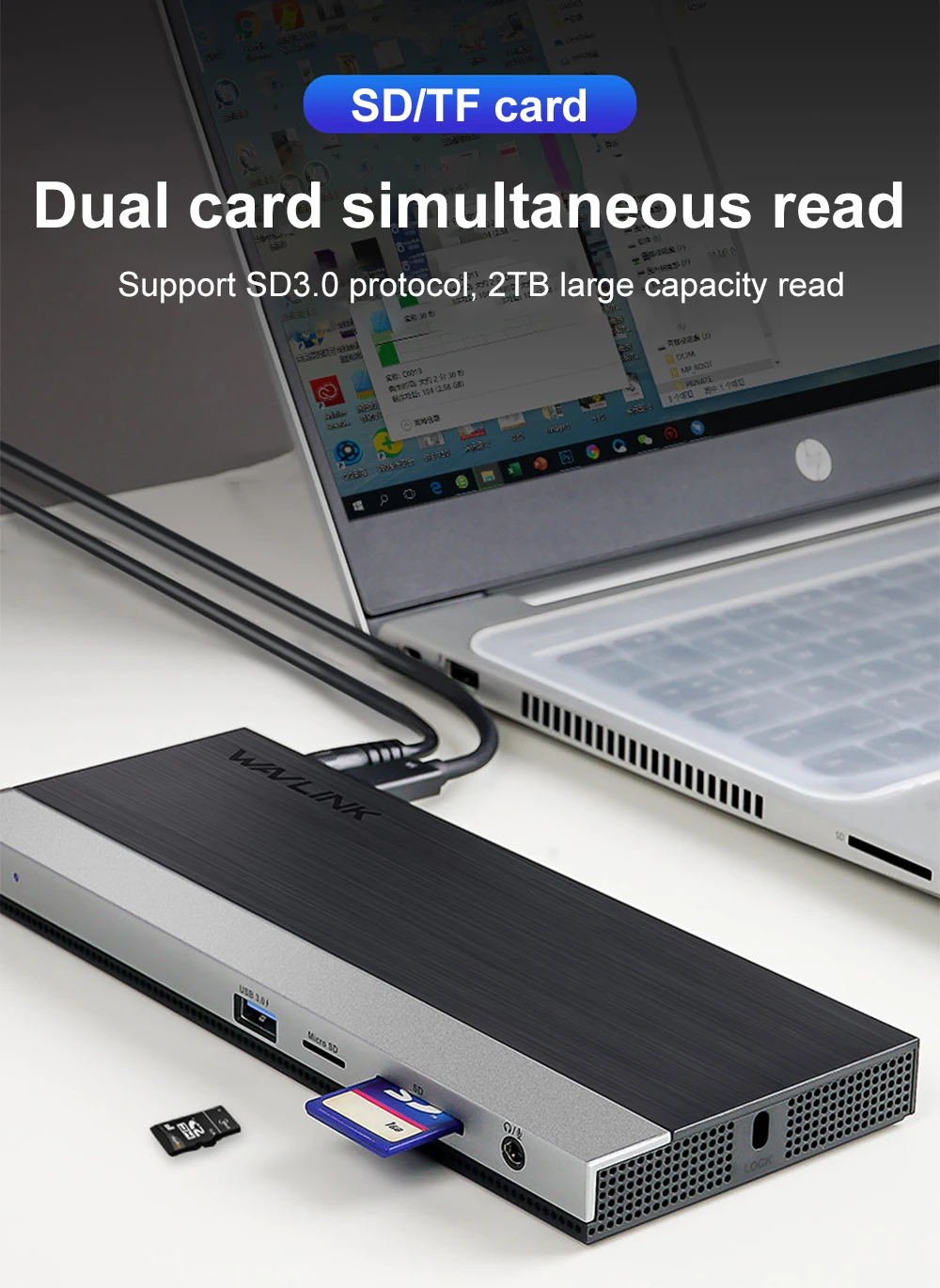

---9. Build in Combo SD / TF Card Reader SD V3.01 support SDHC / SDXC capacity up to 2TB.

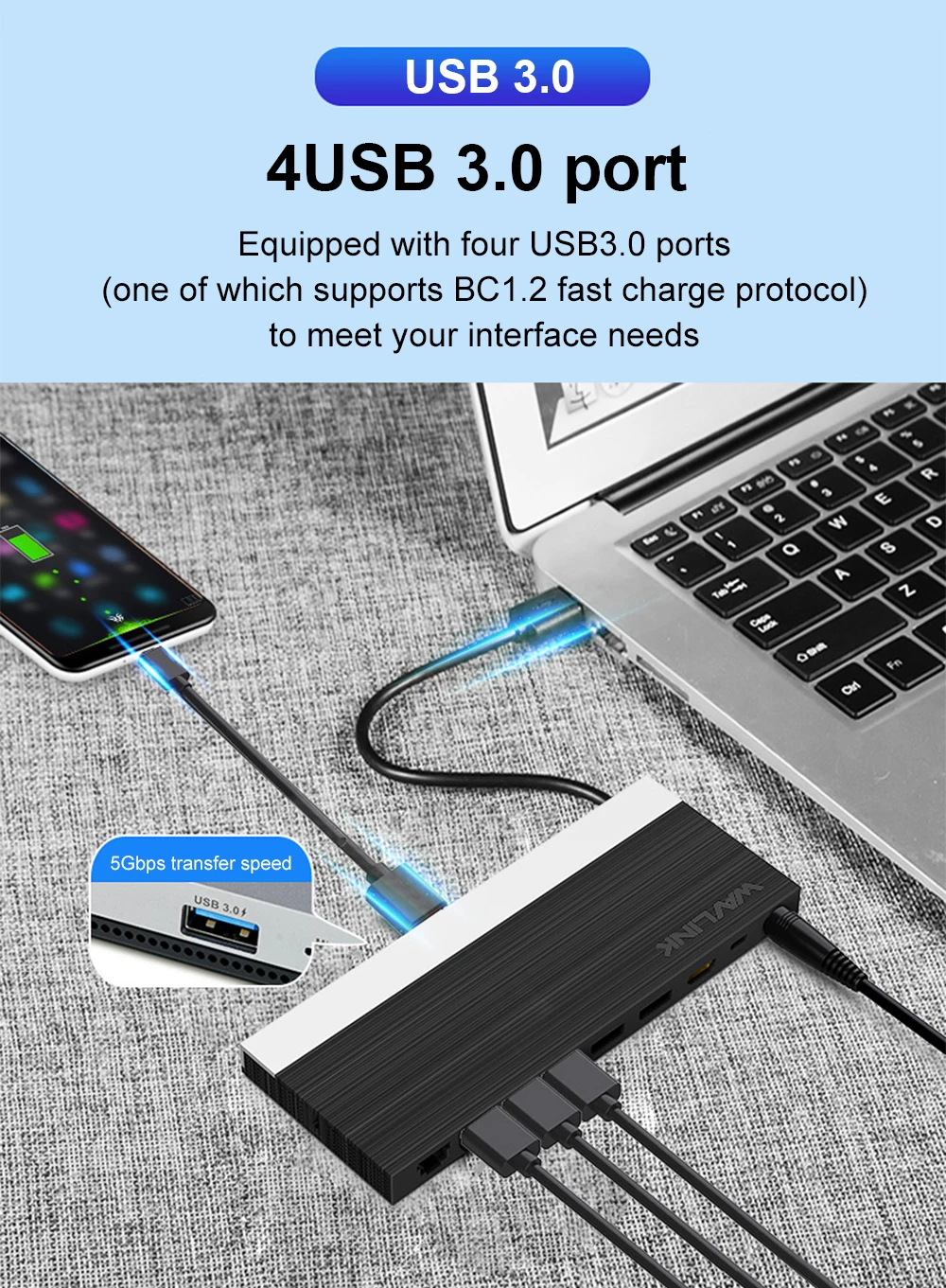

----10. Four USB 3.0 Type-A ports with one port has BC1.2 fast charging.
---11. Support OS Windows 7 / 8 / 10; Max OSX 10 or the latest version.

System Requirement
1. USB-C Computer had USB3.1 full function with data transfer, USB-C Power Delivery & Video Alternate Mode
2. Windows 7 /8 /10 or later
3. MacOS 10.X or above

Pls noticed:

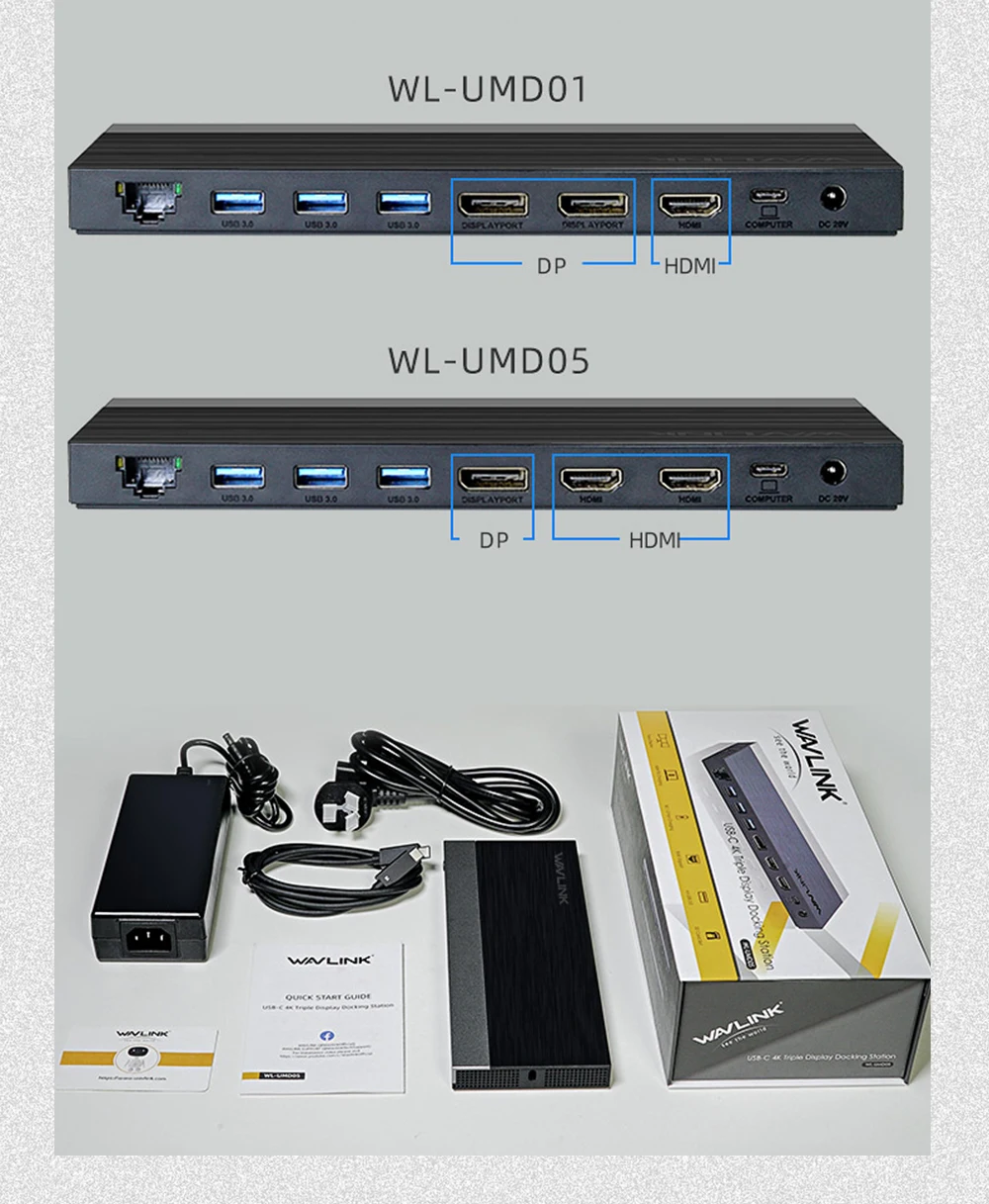

this link including two model,model UMD01(DP*2,HDMI*1) and  model UMD05(DP*1,HDMI*2) ,Please buy according to your needs.


Working Standard
1. USB-C I/P: USB3.1 Gen2 (data, Video and Upstream Charging)
2. Single DisplayPort: 4K/60Hz max.
3. Single HDMI-port: 4K/60Hz max.
4. USB-C Port: 5Gbps
5. 3 x USB-A Port: 5Gbps
6. 1 x USBA Port: 5Gbps + BC1.2 Charging
7. RJ45: Gigabit Ethernet
8. CardReader: SDHC /SDXC /TF
9. Phone Jack: Stereo 4pole TRRS Stereo

Package Including
1. USB-C Triple Display MST Docking Station
2. Power Adapter 100Watts, DC20V / 5A
3. Quick Installation Guide
4. USB-C to C Cable (eMark) 1meter
